Product Information:

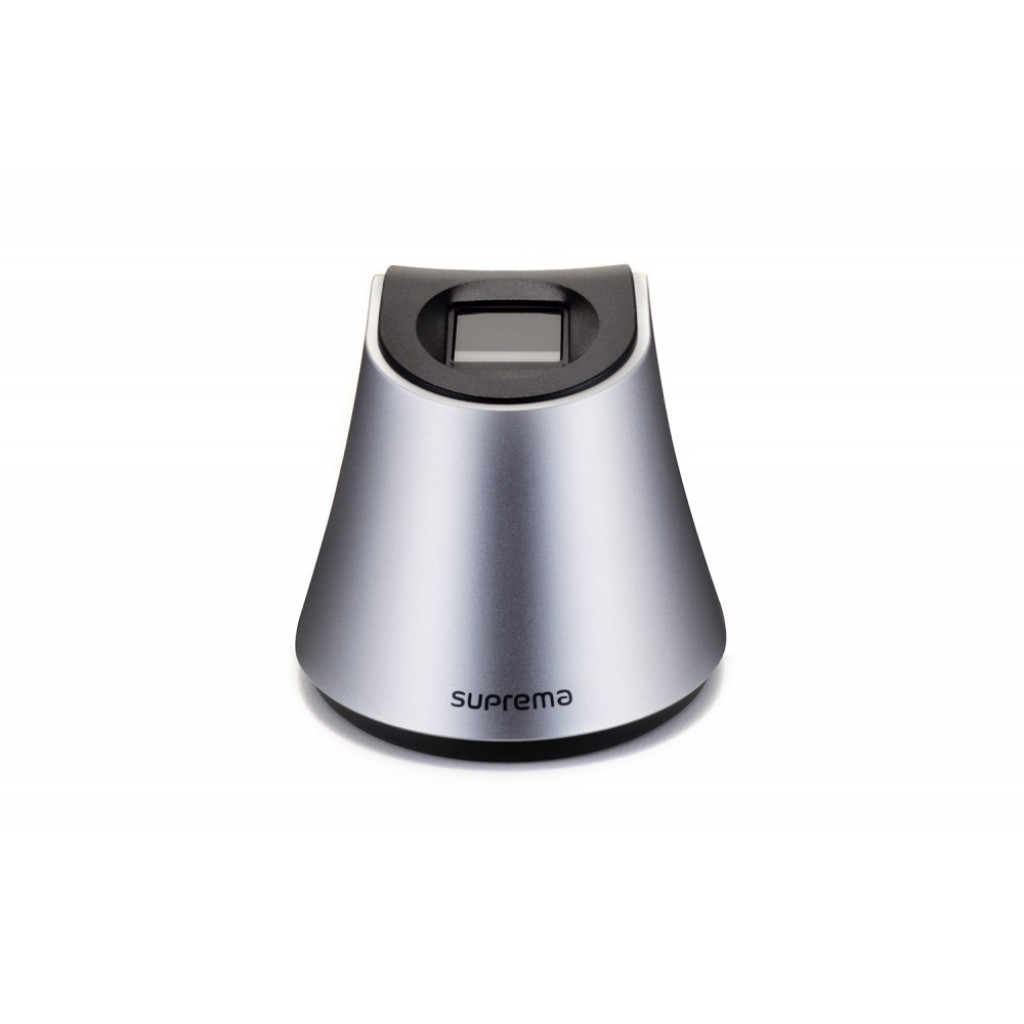

Suprema BioMini Plus 2 Features and Benefits

Features:


Suprema BioMini Plus 2 Description



Multi Dynamic
Range (MDR) Technology

Suprema’s patented MDR technology guarantees exceptional fingerprint
image quality even under extreme direct light condition up to 100,000 LUX.
While providing faster image capture speed of up to 6 ms, MDR technology
allows superior sensing capability regardless dryness as well as
light conditions



Advanced Live Finger Detection
(LFD) Technology

BioMini Plus 2 features advanced Live Fingerprint Detection technology.
The technology effectively analyzes the dynamically changing pattern, liveness
feature and unnaturalness feature of live and new fingers. The technology distinguishes
fakefingerprints made from various materials including clay, rubber, silicon,
glue, paper,film and more.

Rugged IP65-rated
Dust & Waterproof Sensor Surface

BioMini Plus 2 adopts new improved optical sensor which also provides
exceptional durability. The rugged sensor housing effectively protects
sensitive optical structure from dust, moisture and liquid.

Features

ㆍFBI PIV and FBI Mobile ID FAP10 certificates
ㆍNIST certified interoperable image & template format standards (ANSI-378, ISO19794-2/4)
ㆍImage compression standard: WSQ




ㆍMulti Dynamic Range (MDR) Technology
 - Operates under direct sunlight up to 100,000 LUX





• ㆍLive Fingerprint Detection (LFD) Technology
  •  - Distinguishes fake fingerprints made from various materials including
     clay, rubber, silicon, glue, paper, film and more




ㆍNew Improved Optical Sensor
 - 500dpi optical fingerprint sensor
 - Scratch proof IP65 sensor surface



ㆍEasy Integration- BioMini SDK for easy application development
 - Android, MS Windows & Linux compatible
 - Multi-threaded code design for multi-core CPU utilization





Specifications

Main	Sensor Type	Optical
	Resolution / Gray Scale	500 ppi / 256 levels
	Platen Size	16.0 x 19.0mm
	Sensing Area	16.0 x 18.0 mm
	Image Size	315 x 354 pixels
	Image Certificate	FBI PIV and FBI Mobile ID FAP 10, STQC
	Template Format	Suprema, ISO 19794-2, ANSI 378
	Image Format	RAW, BMP, WSQ, ISO 19794-4
	Live Fingerprint Detection	Supported
	IP Rating	IP65(Sensor Surface)
Interface	USB	2.0 High Speed
Hardware	Operating Temperature	-10 ~ 50°C
	Operation Humidity	0 ~ 90% RH
	Certification	CE, FCC, KC, RoHS, CB, WEEE, USB-IF, WHQL
	Dimensions(W x L x H)	66 x 90 x 58 mm
	Weight	175g
Compatibility	Operating System	Windows XP, Vista, 7, 8, 8.1, 10 32/64bit Ubuntu, Debian, Fedora, OpenSUSE, CentOS 32/64bit Android 4.1(Jelly Bean) and Above
