Product Information:

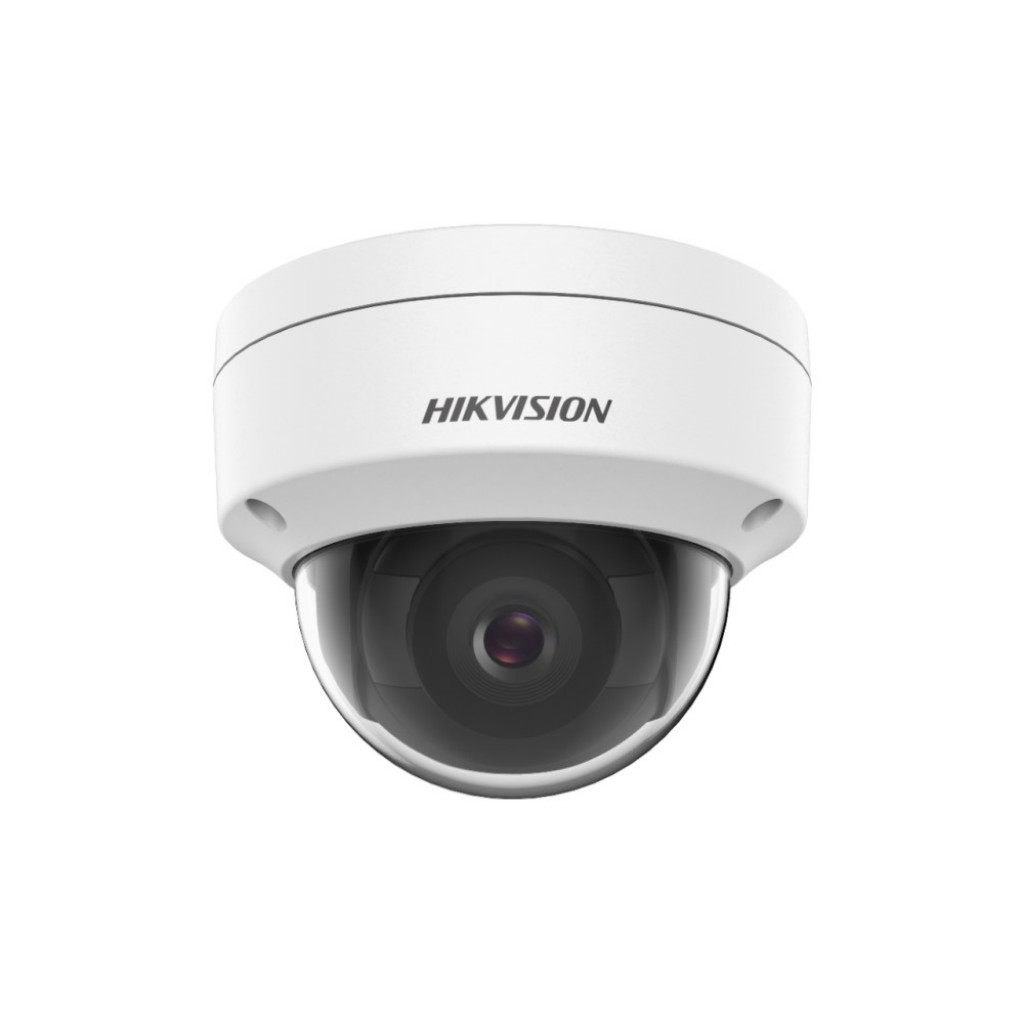

Hikvision DS-2CD1143G0E-I Features and Benefits

Features:


4 MP Fixed Dome Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light with 120 dB WDR
• Water and dust resistant (IP67), vandal proof (IK10)
• EXIR 2.0, advanced infrared technology with long IR distance

Specification




Camera

• Image Sensor:      1/3" Progressive Scan CMOS
• Min. Illumination:      Color: 0.028 Lux @ (F2.0, AGC ON)
• Shutter Speed:      1/3 s to 1/100,000 s
• Slow Shutter:      Yes
• Day & Night:      IR Cut Filter
• Wide Dynamic Range:      Digital WDR
• Angle Adjustment:      Pan: 0° to 355°, tilt: 0° to 75°

• Lens:      Fixed lens, 2.8/4 mm
• Aperture:      F2.0
• FOV:      2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
• Lens Mount:      M12

• IR Range:      Up to 30 m
• Wavelength:      850nm

• Max. Resolution:      2560 × 1440
• Main Stream:      50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
• Sub Stream:      50Hz: 20fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
• Video Compression:      Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
• H.264 Type:      Baseline Profile/Main Profile
• H.265 Type:      Main Profile
• Video Bit Rate:      32 Kbps to 8 Mbps

• Basic Event:      Motion detection, video tampering alarm, exception (illegal login)
• Region Of Interest:      1 fixed region for main stream
• Linkage Method:      Upload to FTP, notify surveillance center, send email

• Image Enhancement:      BLC, HLC, 3D DNR
• Image Setting:      Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
• Day/Night Switch:      Day/Night/Auto/Schedule
• SNR> 50dB

• Protocols:      TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• API:      ONVIF (PROFILE S), ISAPI, SDK
• Security:      Password protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
• Simultaneous Live View:      Up to 6 channels
• User/Host:      Up to 32 users,3 levels: Administrator, Operator and User
• Clienti:      VMS-4200, Hik-Connect, Hik-Central
• Web Browser:      IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11

• Communication Interface:      1 RJ45 10M/100M self-adaptive Ethernet port

• General Function:      Anti-flicker, heartbeat, mirror, privacy mask
• Reset:      Reset via web browser and client software
• Startup And Operating Conditions:      -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Storage Conditions:      -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
• Power Supply:      12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
• Power Consumption And Current:      12 VDC, 0.30 A, max. 3.6 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.5 W
• Material:      Front cover: plastic, bottom base: metal
• Dimensions:      Camera: Φ114 mm × 82.4 mm (Φ4.5" × 3.2") With package: 134 × 134 × 108 mm (5.3" × 5.3" × 4.3")
• Weight:      Camera: approx. 400 g (0.9 lb.) With package: approx. 580 g (1.3 lb.)

• EMC:      47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
• Safety:      UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
• Chemistry:      2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
• Protection:      Ingress protection: IP67 (IEC 60529-2013), IK10(IEC 62262:2002
