Product Information:

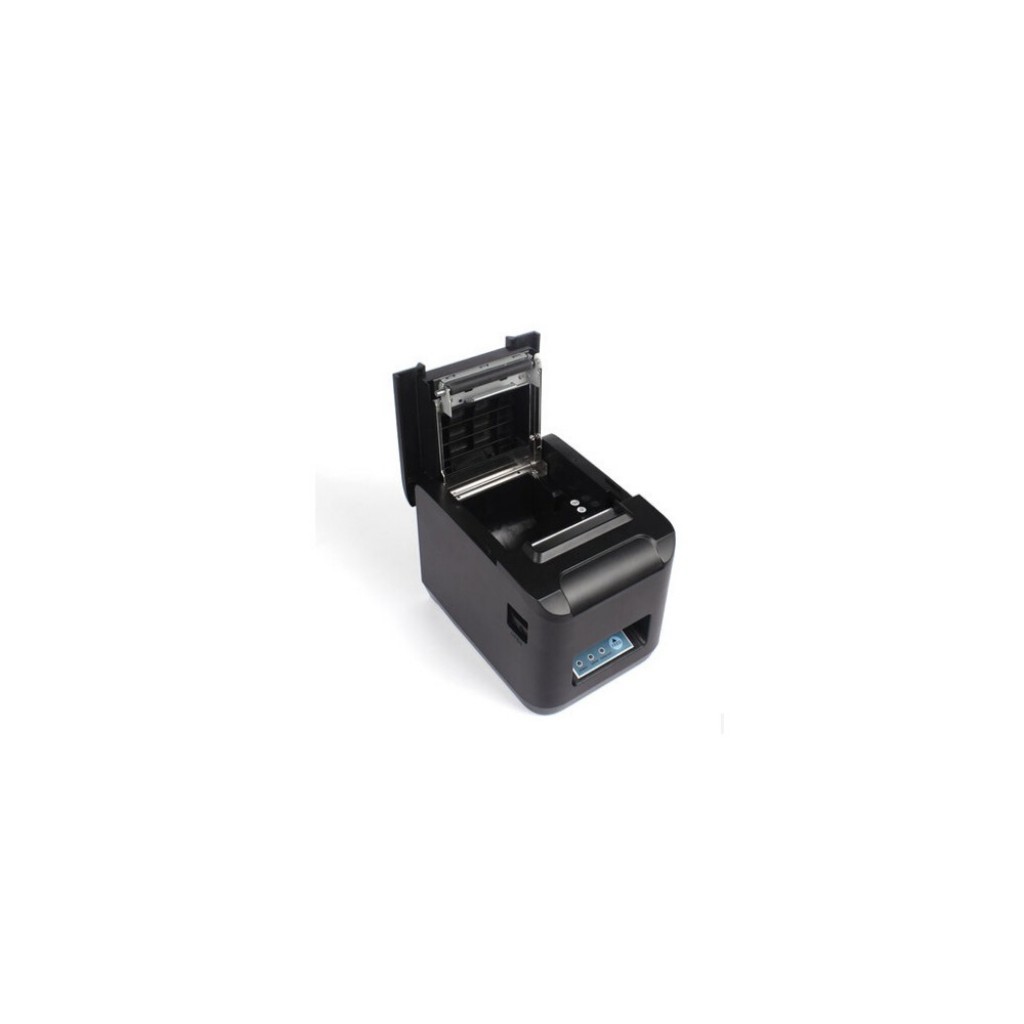

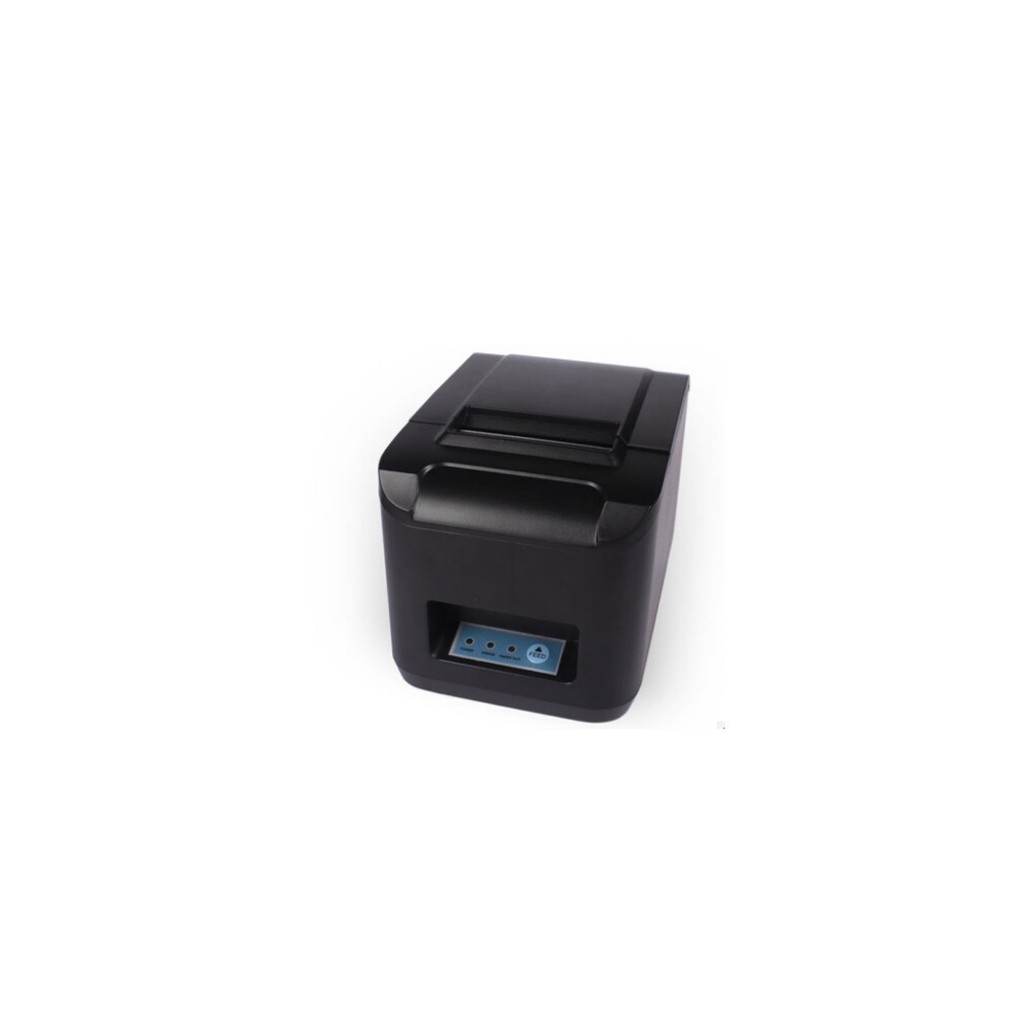

Black Copper BC-90AC 80mm Thermal Receipt Printer Features and Benefits
Features:
Black Copper BC-90AC 80mm Thermal Receipt Printer Description
Black Copper BC-90AC
Specs at a Glance BC-90AC Receipt Printer |
- Internal Power Supply
- High Throughput: 22 RPM (Receipts per Minute)
- "Plug & Play" USB or Ethernet Drivers
- “Drop-In & Print” Paper Loading
- All Accessories Included
- All Drivers and Software Included
- Revolutionary futurePRNT Receipt Design Software
- Features AllReceipts, Digital Receipt Solution
- Black Copper BC-90AC Certified by Major Software Houses
|
Black Copper Introducing the BC-90AC futurePRNT, the first all-in-one thermal receipt printer. Yes, all the parts and software are included in one box. To get you setup quickly, we’ve included an power supply, interface cable, power cable and a thermal paper roll. To bring you the future of receipt printing now. Redesign your receipt without modifying your application. Add your logo. Add coupons. Preview receipts and enhance bar codes. Included operating system drivers allow for installation.
But setup is not the only fast part. The BC-90AC thermal receipt printer is a fast printer. It's the All-In-One-Box Miracle coupling amazing features and high reliability at an affordable price!
|
SPECIFICATIONS - BC-90AC Series
|
|
Printer Method
|
Direct Line Thermal Transfer
|
|
Print Speed
|
22 RPM (Receipts Per Minute)
|
|
Printer Case Color
|
Black
|
|
Models Available
|
With Auto Cutter
|
|
Print Resolution
|
203 dpi (8 dots per mm)
|
|
No. of Columns
|
Epson Mode = 40, ESC/POS™ Font A 42 Font B 64
|
|
Font Size
|
12 x 24
|
|
Character Set
|
ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese
|
|
International Code Pages
|
Epson ESC/POS™= 10 + 1 blank allowing an additional character page to be added
|
|
Bar Codes
|
Extended barcode functionality - 9 versions / PDF 417, Maxicode Option
|
|
Line Spacing
|
3 mm or 4 mm or programmable
|
|
Paper Specifications
Width
Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width
|
80mm standard,
0.065 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
N/A
80mm paper = 76mm
|
|
Top Margin
|
11 mm minimum default
|
|
Auto Cutter
|
Guillotine (Partial Cut Only)
|
|
Cover Open Sensor
|
Yes
|
|
Manufacture By
|
Black Copper
|
|
Multiple Copy Support
|
Supported through Software
|
|
Journal Capability
|
Supported through Software
|
|
Label Support
|
N/A
|
|
Power Supply
|
External with power cable supplied available on the BC90AC USB Full Speed 2.0 USB cable)
|
|
Drivers Available
|
Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™
|
|
Speed
|
Super Fastest
|
|
Swappable Interfaces
|
N/A
|
|
Connectivity
BC-90AC
|
USB 2.0, Full Speed with cable supplied
|
|
Emulation Modes
|
Epson ESC/POS
|
|
Peripheral Drive Circuit
|
2 circuits, (24V max. 1A), 1 Compulsion input
|
|
Power Consumption
|
Average 1.6 Amp. Printing, 0.1 Amp. Standby
|
|
Operating Conditions
|
Temperature: 5ºC to 45ºC
Humidity: 10% - 90% RH (without condensation)
|
|
Storage Conditions
|
Temperature: -20ºC to 60ºC
Humidity: 10% - 90% RH
|
|
Dimensions
Weight:
Auto Cutter Models
|
142 x 132 x 204 (w x h x d)mm
BC-90AC
|
|
Safety Standards
|
UL, C-UL, TüV, FCC, VCCI, EN55022, CE
|
|
Reliability MCBF
Print Head
Auto Cutter
|
120 Million Lines
200km
5 Million Cuts
|
|
Accessories ALL Included with Printer
|
Installation CD with Drivers, 80mm Paper Guide, 6ft Interface Cable, 6ft Power Cable, Power Switch Cover
|
|
Warranty
|
1 Year Limited Manufacturer Warranty
|
|
Options
|
Splash Proof Cover (BC-90AC)
Call-A-Black Copper For Extended Warranty
|
