Product Information:
SecuGen Hamster Pro HU20 Features and Benefits
Features:

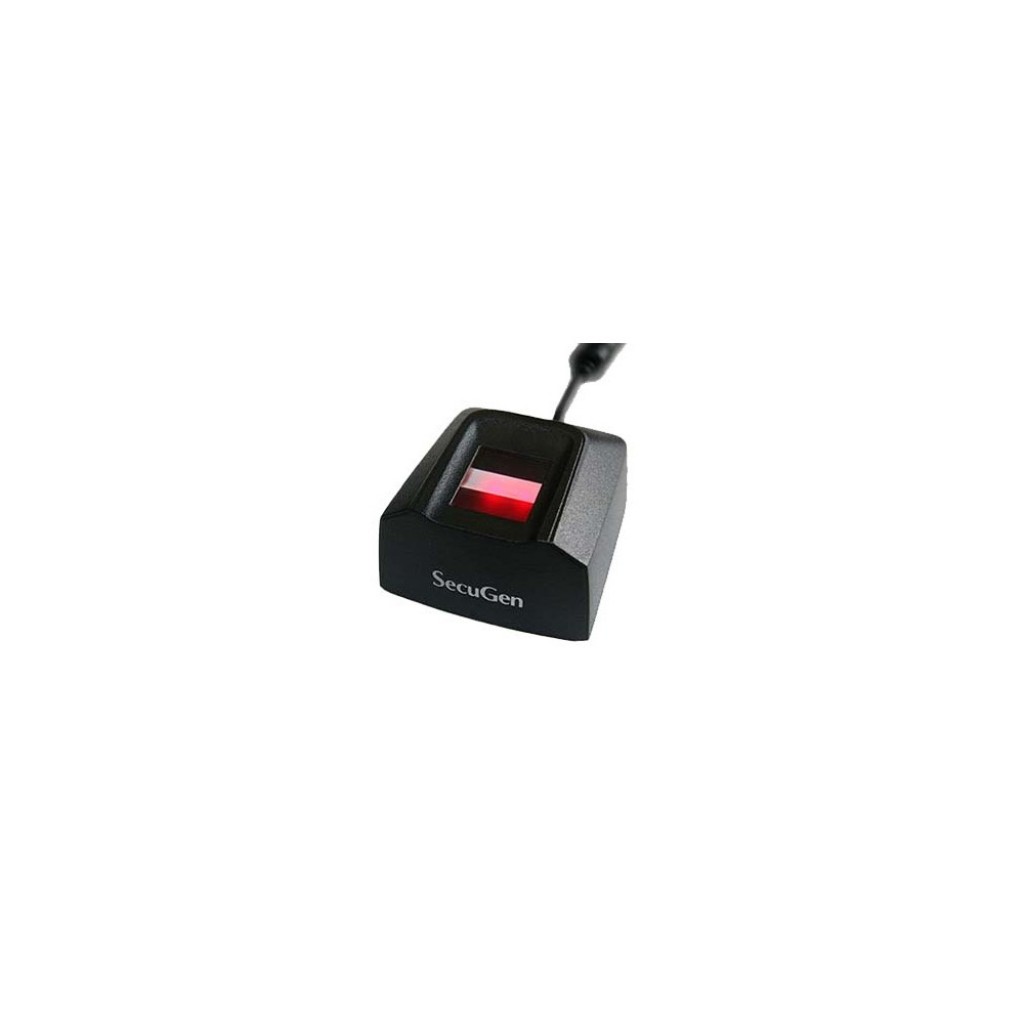

SecuGen Hamster Pro HU20 Description
SecuGen's new ultra-compact, high image quality USB fingerprint reader that is FBI Certified as meeting FIPS 201 (PIV) and FAP 20 Mobile ID requirements. Featuring a low-profile and IP65 Certified dust- and water-resistant design, the Hamster Pro 20 is built with the industry's most rugged and advanced optical sensor using patented and patent-pending fingerprint technology
SecuGen Hamster Pro 20 works together with SecuGen's MINEX Certified Template Generator and Matcher to develop PIV-Compliant biometric applications. The MINEX Certified Template Generator and Matcher are available in a variety of SecuGen SDKsthat may be downloaded for free.
SecuGen Hamster Pro 20 also supports the Windows Biometric Framework (WBF) right out of the box for:
- Quick and secure fingerprint login to PCs running Windows 7, 8, and 8.1 and Windows Server 2008 R2 and 2012
- Added biometric security when purchasing and accessing apps purchased from the Windows Store on Windows 8.1
Features:
| - |
FBI Certified PIV Single Finger Capture Device and Mobile ID FAP 20 Compliant |
| - |
Listed on GSA FIPS 201 Approved Products List |
| - |
STQC Certified |
| - |
High-performance, maintenance-free optical fingerprint sensor |
| - |
Sensor resistant to scratches, impact, vibration and electrostatic shock |
| - |
Auto-On™ (Automatic Finger Placement Detection) * |
| - |
Smart Capture™ (Automatic Image Adjustment to Accomodate Moist & Dry Fingers) ** |
| - |
USB connection |
| - |
Ultra-compact, lightweight and portable |
| - |
IP65 Certified for dust and water-resistance |
| - |
Integrated finger guide |
| - |
Readily accessible for any finger |
When used with SecuGen Software:
| - |
Fast and accurate verification |
| - |
Latent print image removal (does not accept prints left behind) |
| - |
Encryption of fingerprint templates (with SecuGen Proprietary templates) |
| - |
Fingerprint Device Recognition™ |
| - |
Multi-Device Connection™ |
*Auto-On™ is an Automatic Finger Placement Detection technology that automatically checks for the presence of a finger. When used with Auto-On-compatible software, the Hamster Pro 20 will turn on and scan your finger as soon as you touch the sensor - all without having to prompt the system.
** Smart Capture™ ensures quality fingerprint scanning of difficult fingers. By automatically adjusting the brightness of the sensor, Smart Capture allows the Hamster Pro 20 to capture high quality fingerprints from a wide range of traditionally difficult fingers, including those from dry, wet, scarred or aged skin, and even in bright ambient conditions such as under direct sunlight.
Specification:
| Name (Model) |
Hamster Pro 20 (HU20™) |
| Optical Fingerprint Sensor |
U20™ |
| Image Resolution |
500 DPI |
| Image Size |
300 x 400 pixels |
| Platen Size |
18.2 mm x 22.9 mm |
| Effective Sensing Area |
15.24 mm x 20.32 mm |
| Fingerprint Capture Speed |
0.2 ~ 0.5 second with Smart Capture™
|
| Operating Temperature |
-20° ~ 65°C |
| Operating Humidity |
90% or less RH, noncondensing |
| Dimensions / Weight |
31.6 x 58.5 x 53.9 mm / 98 g |
| Supply Voltage / Max. Current |
5 V DC / 150 mA |
| False Acceptance, Rejection Rates |
Read our FAQs about FAR and FRR |
| Interface |
USB 1.1 Full-Speed, USB 2.0 Hi-Speed |
| |
|
| Supported Standards |
ANSI INCITS 378, BioAPI, FIPS 201 and FAP 20 (PIV-071006) (view PDF), ISO/IEC 19794-2, ISO/IEC 19794-4, SP 800-76 (view PDF) |
| Certifications |
FCC, CE, RoHS, FBI (more info), GSA FIPS 201 APL (more info), STQC, IP65
|
| Supported Operating Systems |
Windows 8.1 / 8 / 7 / Vista / XP
Windows Server 2012, 2008 R2, 2003
Java, Linux, Android 3.1 and above
|
