Product Information:

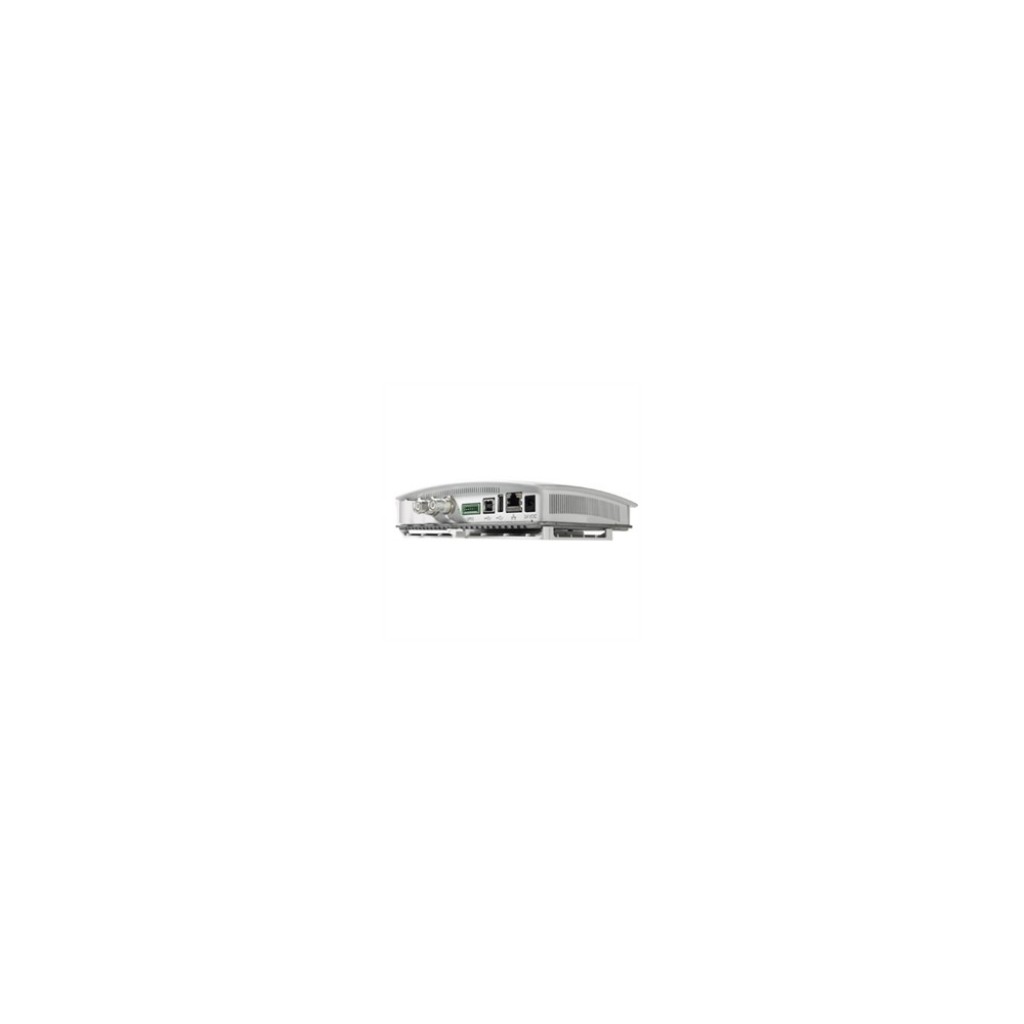

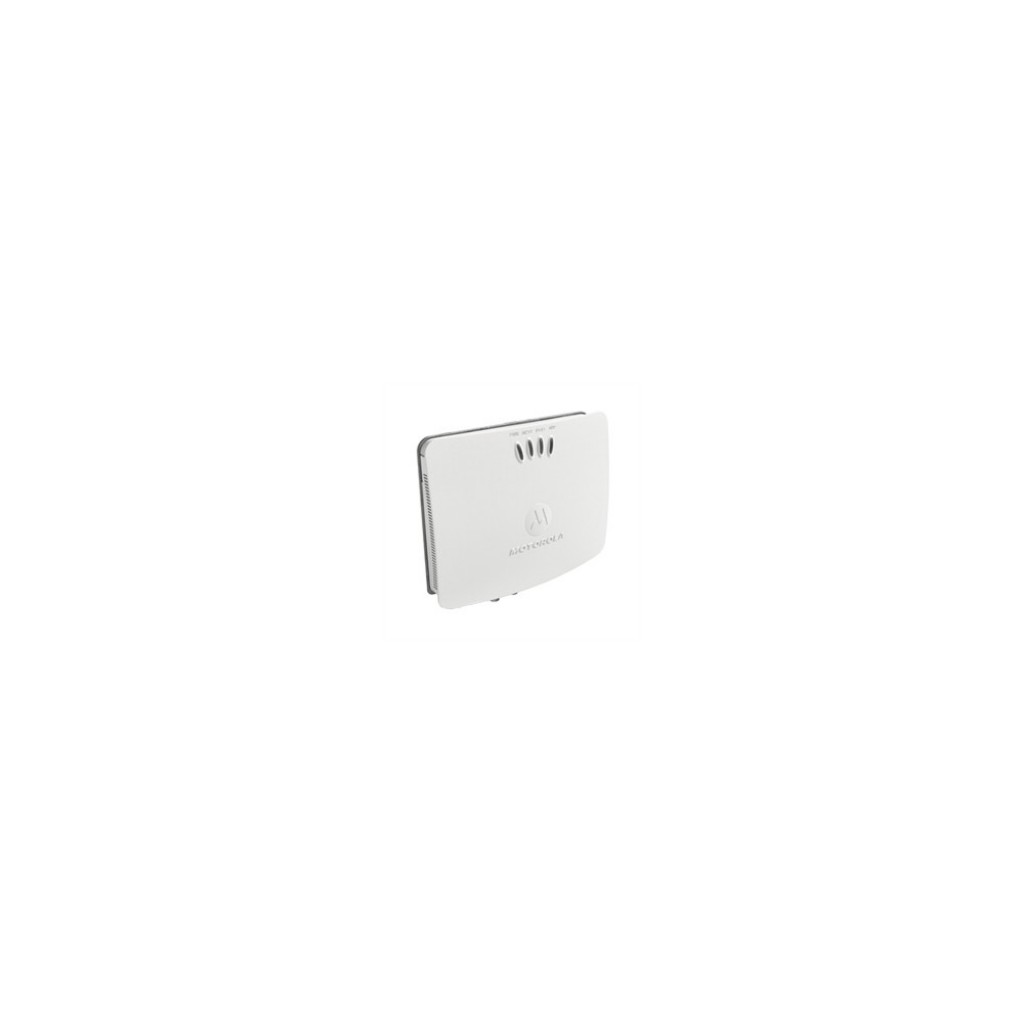

ZEBRA FX7500 RFID READER - 2 PORT Features and Benefits
Features:
ZEBRA FX7500 RFID READER - 2 PORT Description
FEATURES
- All-new high performance radio technology.
- Higher sensitivity, improved interference rejection and echo cancellation means you get the best-in-class dense reader mode performance, up to 1200 tags/sec in FM0 mode.
- Integrated Power Over Ethernet (POE), optically isolated GPIO, USB Client and Host ports with Wi-Fi and Bluetooth connectivity via USB.
- All the tools you need for fast, easy deployment and simplified ongoing management of your RFID applications are built right into the FX7500 architecture.
- 2-port and 4-port reader configurations.
- More configuration options mean more flexibility to optimize your read field. Deploy precisely the number of read points you need for proper coverage, no more, no less, and reduce your TCO.
- Plenum Area Rated.
- The FX7500 is approved and suitable for environmental air handling space installation, so it can operate effectively within walls and ceilings.
- Support for worldwide standards (FCC, ETSI EN 302 208) in either 4-port and 2-port mono-static antenna configurations.
- EPC standards-based defined reader managemen.t
- Auto-discovery.
- Flexible firmware upgrade features.
- Seamlessly integrates with existing IT environments; enables remote and centralized management; simplifies and reduces the cost of set-up, deployment, testing and management.
- Next generation reader platform, including dense reader mode support.
- Best-in-class read rates deliver superior read performance.
- Linux: 512 MB Flash/256 MB RAM.
- Integration of a wide range of third-party applications for fast application deployment; supports upgrading to meet future requirements; maximizes product lifespan; provides outstanding security and investment protection.
- EPC Global LLRP and RM interface support; comprehensive API support â .NET, C and Java.
- Simplifies application development.
SPECIFICATIONS
ELECTRICAL:
Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: FCC (902-928 MHz)
Transmit Power: +31.5 dBm
Max Receive Sensitivity: -82 dBm
Max Read Distance: Not published
Max Read Rate: Not published
Data Interface: Ethernet with POE support
GPIO: 2 inputs, 3 outputs, optically isolated
Power Source: Power Supply if selected or POE
MECHANICAL:
Antenna Ports: 2 monostatic ports (RP-TNC female) (connects to RP-TNC male)
Dimensions: 195.6 x 149.9 x 43.2 mm (7.7 x 5.9 x 1.7 in)
Weight: 0.86 kg (1.9 lbs)
ENVIRONMENT:
IP Rating: IP 53
Operating Temperature: -20° to +55°C (-4° to +131°F)
APPLICATION INTERFACE:
Host API: C#, .NET
Demo Software: PowerSession
